Polyester Dryer Fabric
For tissue and packaging paper machines operating at 400–1,200 m/min. Polyester monofilament construction, flat yarn weave. Continuous operating temperature up to 180°C. Custom-manufactured to machine width, length, and seam specification.
400 – 1,200 m/min
Machine Speed Range
12 – 400 g/m²
GSM Range
100% Polyester (PET) Monofilament
Material
6 – 14 months (varies by paper grade and operating conditions)
Expected Lifetime
Paper Grades & Machine Conditions
Engineered for these specific operating conditions
Paper Grades
Machine Types
Operating Range
400 – 1,200 m/min
Machine Speed
12 – 400 g/m²
GSM Range
Not sure which grade your machine runs? Contact our application engineer.
Contact EngineerCompatible Paper Machine Brands & Models
This fabric has been tested and proven on the following paper machines
| Brand | Compatible Models | Typical Width | Typical Speed |
|---|---|---|---|
| Valmet | DryRun, SymRun | 3,500 – 8,600 mm | up to 1,200 m/min |
| Voith | DryStar, MasterRun | 3,000 – 7,800 mm | up to 1,100 m/min |
| Bellmer | Dryer Section Standard | 2,500 – 5,500 mm | up to 800 m/min |
| Toscotec | TT Dryer | 2,800 – 6,000 mm | up to 1,500 m/min |
| A.Celli | AC-Dryer Series | 2,500 – 5,600 mm | up to 1,200 m/min |
| Recard | Dryer Section | 2,200 – 4,800 mm | up to 900 m/min |
| Over Meccanica | OM-Dryer | 2,400 – 5,200 mm | up to 1,000 m/min |
Running a machine not listed? Our engineers can customize for any brand.
Ask an EngineerComplete Technical Parameters
Full specification sheet for engineering evaluation
| Material | 100% Polyester (PET) Monofilament |

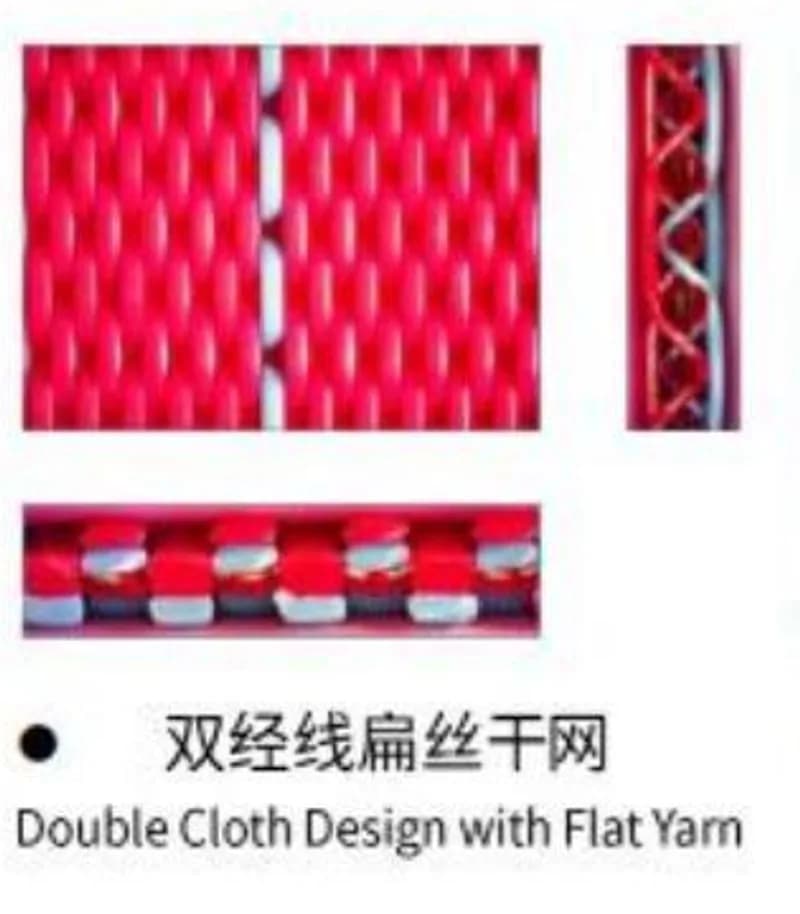

| Construction | Flat yarn, multi-shed weave |
| Air Permeability | 350 – 650 CFM (at 125 Pa, ISO 9237) |
| Continuous Operating Temperature | Up to 180°C |
| Peak Temperature | 200°C (≤ 15 minutes) |
| Tensile Strength (Warp) | ≥ 80 kN/m |
| Tensile Strength (Weft) | ≥ 45 kN/m |
| Elongation at Break (Warp) | ≤ 2.5% at 80 kN/m |
Need parameter verification? Request a certified test report to validate specifications.
Differentiation & Selection Guide
How this model compares to other PAPTEX options and competitor alternatives
vs Other PAPTEX Models
- Spiral Dryer Fabric
Spiral: higher open area (20–30% vs flat yarn). Better for heavy-weight grades where moisture removal rate is the bottleneck. Flat yarn: 15–25% longer life in tissue applications due to higher surface contact area and lower abrasion per cycle.
- Round Yarn Dryer Fabric
Round yarn: higher air permeability (typically 600–900 CFM). Preferred for high-speed machines where air movement is critical. Flat yarn: better sheet support for lightweight grades (≤ 40 g/m²). Lower contamination retention due to smoother surface.
- Anti-static Dryer Fabric
Anti-static: carbon-filled monofilament for static dissipation. Required for grades prone to static buildup (release paper, some specialty grades). Flat yarn standard: for applications where static is not a concern. No functional difference in drying rate.
vs Competitor Alternatives
- Albany International
Albany: publicly traded (NYSE: AIN), larger R&D budget. PAPTEX: factory-direct supply chain. No distributor margin. Same PET monofilament grade (ISO 9001 certified). Custom-manufactured per order — no stock fabric compromise on dimensions. Direct engineer communication from inquiry to delivery.
- AstenJohnson
AstenJohnson: vertically integrated monofilament production. PAPTEX: sources virgin PET monofilament from certified suppliers. Caliper tolerance ± 0.05 mm vs industry typical ± 0.10 mm. Delivery 15–25 days vs 30–45 day industry average. Single-piece orders accepted.
- Heimbach
Heimbach: German engineering, strong European service network. PAPTEX: equivalent ISO 9001 quality system. PTFE coating applied in-house during manufacturing — no post-treatment required. 6-language technical support. 120,000 m² factory with TEXO (Sweden) and JAGER (Germany) production lines.
See full technical comparison across all PAPTEX models
Compare All ModelsTechnical Documents
Engineering datasheets, CAD drawings, and installation guides
Polyester Dryer Fabric — Flat Yarn Datasheet
Complete technical specifications: air permeability profiles, tensile strength curves, caliper chart, seam configuration diagrams. 12 pages.
Dryer Fabric Installation & Maintenance Guide
Handling, storage, seaming procedure, tensioning sequence, break-in protocol, cleaning recommendations, and wear inspection criteria. 16 pages.
Machine Parameter Submission Form
Template for submitting your paper machine specifications. Fields: machine brand, model, width, speed, paper grade, GSM range, current fabric specs, steam pressure, dryer section layout.
PAPTEX Polyester Dryer Fabric Flat Yarn Series — Technical Datasheet
Complete technical specifications: air permeability profiles, tensile strength, caliper tolerance, seam configurations, coating options. For procurement engineer technical evaluation.
PAPTEX Polyester Dryer Fabric — Installation & Maintenance Guide
Complete installation procedure, required tools, tensioning sequence, break-in protocol, preventive maintenance schedule, and troubleshooting guide. For mill maintenance teams.
PAPTEX Dryer Fabric — Machine Parameter Submission Form
Submit your paper machine specifications to receive a customized dryer fabric recommendation. After submission, a PAPTEX application engineer responds within 24 hours with a technical recommendation including CFM calculation, seam selection, and competitive quotation.
Procurement Questions
Answers to common questions buyers ask before making a decision
Have a question not listed here? Ask our engineer directly.
Ask an EngineerRequest Dryer Fabric Recommendation
Send us your paper machine parameters. Our application engineer will respond within 24 hours with a dryer fabric recommendation specific to your machine: CFM calculation, seam selection, material specification, and competitive quotation.
